Brand New Mr Goodwrench 383 Stroker Engines
I take a New GM Built 260hp rated motor and change the crankshaft and pistons balance the assembly making a compression ratio to 9:1
Then I install a new performance camshaft, your choice of intake duration @ .050" :- 214, 224, 234
Next I clean up the ports and add a multiangle valve job. New valve springs are fitted to match the camshaft
The motor is then Re-assembled Base Price $3000
You may choose the Intake Manifold, Carburetor, Distributor & Accessories To Complete Your Engine...
A 350 and 383 might make the same HP but the 383 will make 30 more TQ Depends on the camshaft
ADD ONS

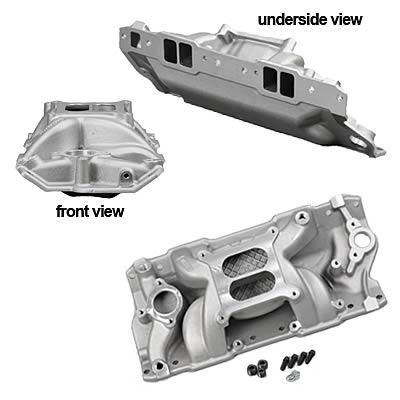

Summit Stage 1 Manifold $120 & $130
Summit Stage 3 Airgap Manifold $215
Edelbrock EPS Satin $150
Edelbrock RPM Satin $160
Edelbrock Performer Airgap Satin $235
Edelbrock RPM Airgap Satin $255
Professional Products Cyclone Manifold Satin $130 Polished $175
Professional Products CrossWind Manifold Satin $180 Polished $220
Holley High Rise Street Domintator $190
Edelbrock 600 Performer Carburetor $270
With Electric Choke $300
Edelbrock 650 Thunder Carburetor $400
Holley Street Avenger 670 $375
Fuel Pump Push Rod & Plate $20
Carter Fuel Pump $30 Summit $50
ProForm Fuel Pump $70
Fuel Line For Holley Carb $80
Braided Steel Fuel Supply Line $45
Rubber Fuel Supply Line $15
.jpg)
HEI Street Distributor
Summit $105 Mallory $160 MSD $185
Taylor 8mm Wires $40
Taylor Thunder Volt 8.5mm $80
Plug Wire Separators $20
NGK Spark Plugs $20
Chrome High Volume Oil Pan $70
Std Volume Chrome Oil Pan $45

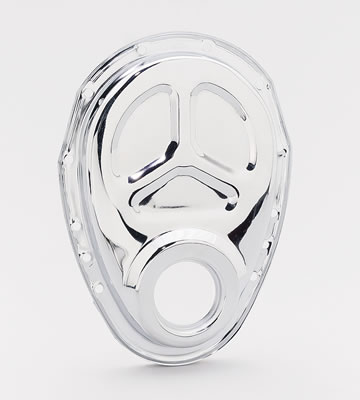

Chrome Timing Cover $15
Thermostat $15
1Adjustable Thermostat Cover $25
ProForm Polished High Flow Aluminum Water Pump $205
Weiand Polish Water Pump $135
Flow Kooler Iron Water Pump $95
80amp Alternator $100
Chrome 100amp Alternator $120
Alternator Mount Pass Side Long Water Pump $35
Alternator Mount Driver Side Short Water Pump $95
Hitachi 1.9hp Reduction Starter Motor $165
Aluminm Crank Pulley $35
Water Pump Pulley $45
Chrome $25
Aluminum $90
Many Valve Cover & Dress Up Options Fron $30 To $250
LABOR:
Intake Manifold Installed with Gaskets $50
Carb, Fuel Supply & Ignition Systems $150
Water Pump Alternator & Pulleys $125
Test Run Engine Required For Warranty $300
.jpg)
Shipping $500
See Dyno Testing the SBC
SEE HEADERS
__________________________________________________________________________________
Roller Cam Engine
NEW G.M. GoodWrench Replacement engine 350 C.I.D./5.7L. VIN Code "K" --1987-1995
CYLINDER HEAD CASTING NUMBER 14102193 SWIRL PORT INTAKE PORT DESIGN 65.3cc COMBUSTION CHAMBER
http://www.thirdgen.org/techboard/tech-general-engine/294939-heads-better-14102187-14102193-a.html
http://www.thirdgen.org/techboard/tbi/283217-garage-ported-193-s.html
http://www.thirdgen.org/techboard/tbi/268064-swirl-port-heads-why.html
__________________
Converted to a 383 includes Harmonic Balancer & Flexplate
12513151Engine Roller Tappet Hydraulic Camshaft $3400
See Add Ons Above
__________________________________________________________________________________
Vortec Engine
NEW G.M. GoodWrench Replacement engine 1996-00 5.7L 350 12530282
5.7 Liter (350 CID)
295 HP @ 5000 RPM / 355 lb. ft. @3600 RPM
Roller Tappet Hydraulic Camshaft Vortec Heads
Converted to a 383 includes Harmonic Balancer & Flexplate $3800
See Add Ons Above
Aluminum Intake Manifolds Available for Carburetors but will require an Electric Fuel Pump
MOTOR SPECS:
GM four-bolt, 355-cid, 9.4:1 compression, GM Vortec iron heads (SDPC PN SD8060A, 64cc chambers, 170cc intake runner volume, 1.94/1.50 valves), COMP Cams 1.6:1 Magnum roller tip rockers (PN 1418-16), Edelbrock RPM Air Gap Vortec intake manifold (PN 7516), Speed Demon 750 carb, 1-inch open carb spacer, COMP Cams XE262H cam (262/270 adv duration, 218/224 duration at .050, .462/.469 valve lift, 110 lobe separation) straight up, 1 /34-inch Hooker headers, 91-octane Shell Unleaded fuel
| VORTEC POWER |
| RPM |
TQ |
HP |
| 2600 |
399 |
198 |
| 2800 |
408 |
218 |
| 3000 |
421 |
240 |
| 3200 |
430 |
262 |
| 3400 |
436 |
282 |
| 3600 |
440 |
302 |
| 3800 |
444 |
321 |
| 4000 |
448 |
341 |
| 4200 |
451 |
361 |
| 4400 |
450 |
377 |
| 4600 |
443 |
388 |
| 4800 |
438 |
401 |
| 5000 |
431 |
410 |
| 5200 |
421 |
416 |
| 5400 |
409 |
421 |
| 5600 |
396 |
422 |
| 5800 |
373 |
411 |
| Max |
452 |
422 |
| Avg |
426 |
339 |
ProChargers Available
GM MANIFOLD $400
Installing Vortec Heads on a TBI Engine
The topic of increasing the performance of the TBI engine often comes up . We would guess it comes up often with the people at GM Performance Parts as well, because they have introduced a special aluminum TBI intake manifold (PN 12496821) that adapts the TBI fuel-injection system to the Vortec heads. The manifold has a special water passage under the plenum to keep the fuel vaporized -- remember, the Vortec heads don't have a provision for an exhaust heat crossover passage. The drawback to installing the Vortec heads and the new manifold on the TBI engine is the need to plumb exhaust gas from the exhaust manifold to the EGR valve. GM recommends using the '96 exhaust manifold (PN 12557828), EGR pipe (PN 10220275), and EGR valve (PN 17052693).
The Power+Plus PS (Performance Street) manifold is the ideal street manifold for street rods or engine swaps using the popular 1996 and later Vortec (L31) cast iron heads.
Manifold includes adapter to use a square bore carb.
Features dual distributor holddowns
Includes two pipe tapped rear water ports
Fits Vortec blocks or 1995 & earlier blocks w/Vortec heads
This manifold is based on our most popular manifold, the Performance Street #52000/52001.
It is designed to fit engine swaps using the 1996 and later Vortec (Gen 1+) cast iron heads or the Edelbrock E-Tec aluminum heads.
These cylinder heads are very popular in street rods, engine swaps, or the industrial market.
This manifold can be used on any Chevy V-8 engine utilizing the late Vortec head.
This manifold has provision for external water bypass.
It also features four corner water outlets, dual distributor holddowns, includes a square bore carb adapter and gasket, and will work with a late model style water neck, alternator, HEI and air conditioning brackets.
$230 Edelbrock 7516
Edelbrock's Performer RPM Air-Gap intake manifolds incorporate race-winning technology that's been used on Victor series competition intakes for years. The open air space from the Air-Gap design separates the runners from the heat of the lifter-valley cover. So the air/fuel mixture stays cooler all the way to the heads, which produces a denser charge for more power. Runners are tuned to move the power band 1,000 rpm higher than Performer Air-Gap manifolds, from idle-5,500 rpm up to 1,500-6,500 rpm.
$270 12366573 - Vortec Dual Plane Intake Manifold
This dual-plane was designed for 283-400 ci small-block Chevrolet enginesusing the new vortec cylinder heads P/N 12464298 or 12558060. This high rise manifold was designed for maximum horsepower and a broad torque curve to give you great performance. This manifold accepts square bore carburetor and includes extremally plumbed hot water crossover passage. Vortec heads were releasedon 1996 RPO L31 truck engines. This manifold only has four bolts attaching it to the cylinder head instead of six like all earlier models. Check for proper to carburetor clearance especially on corvettes. Use manifold gasket P/N 12529094 and attchment bolts P/N 24504713.
$290 12496820 - Low-Rise Vortec Intake Manifold With EGR
This Vortec manifold was designed for ultimate horsepower and torque to be used with Vortec cylinder head P/N 12529093 12558060 12497186 or 12464298. This aluminum four-barrel manifold will accept Holley or Quadrejet carburetors
$340 12496822 - Eliminator Single Plane Vortec Manifold
The eliminator Vortec aluminum manifold was designed for ultimate horsepower and torque to be used with Vortec cylinder head P/N 12529093 12558060 12497186 or 12464298. Use intake manifold gasket P/N 12529094 and special manifold bolts P/N 1
These brand new engines are dismantled, lightly honed with a torque plate.
The rings are upgraded to low drag Plasma-Moly.
The pistons are replaced with Speed-Pro 383 Hypereutectic Pistons either flat top H600CP (76cc = 9.3:1) or dished H602CP(76cc = 8.7:1) for lower compression.
The 5.70" GM rods are reused.
The crank is replaced with a new aftermarket high nodular iron 383 crankshaft.
The rotating assembly is balanced (heavy metal being added to the one piece rear seal crankshafts used in the later model engines)
The engine is then reassembled with a harmonic balancer and flexplate (a flywheel option is available at addition expense).
The camshaft change is available in a variety durations to fit your application.
The TSEC warranty is available for purchase.
THIS HIGH SWIRL HEAD CYLINDER HEAD IS NOT A PERFORMANCE ORIENTED CYLINDER HEAD. IT IS INTENDED FOR GOOD BOTTOM END TORQUE AND FUEL ECONOMY. THE INTAKE RUNNER IS RESTRICTIVE BECAUSE IT HAS A RAMP CAST INTO THE BOTTOM OF THE BOWL TO PROMOTE HIGH SWIRL.
Expect 383 Vortec to make about 40 peek bhp more than the first motor above, and about 10ft.lbs more torque.
Vortec Cylinder Heads - Heads Up!
)
