EXAMPLE BUILD SHEET

CHEVROLET 420 ENGINE $10,825

570LBS-FT @ 4900RPM   604BHP @ 6200RPM

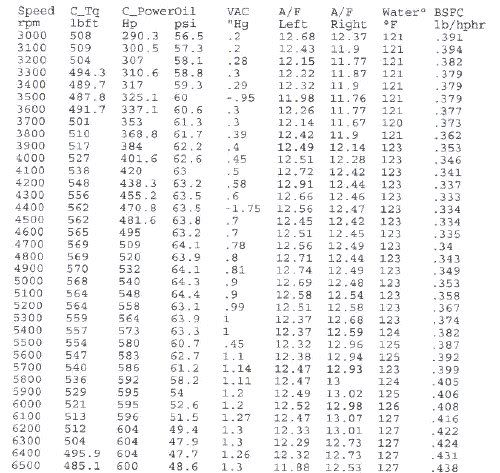

 dyno420604resized.jpg dynotest 420 604 picture by johnnijssen

PARTS:

SHORT BLOCK

$450   2 Bolt Main 400 Block  (OPTIONAL NEW DART BLOCK $2050)

$250   MAIN BEARING SUPPORT GIRDLE PRW0940000

$30     Cam bearing Heavy Duty DUR-CHP8

$10     Brass Freeze Plugs PIO-PE-100-BR

$10     Lifter Oil Restrictors B/B-48000

$550   Crankshaft 400 Mains 3.875” Stroke DSCH4003875

$420   Light Weight I-Beam 4340 Rods 6.00” RP666P

$750   JE Racing Pistons 182036 Clearance 0.005 Compression Ratio 11.7:1

$100   Plasma-Moly Rings JE 182041 1/16 3/16 Top Ring Gap 0.018

$70     Main Bearings MCH-MS-1038H Clearance 0.0025

$75     Rod Bearings MCH-CB-663H-001 Clearance 0.0025

$135   Harmonic Balancer SFI 90000

$25     Balancer Bolt ARP-134-2501

$60     Flex Plate SFI SOM-FP350

$10     Flex Plate Bolts ARP-100-2901

$2945



LONG BLOCK

$1500  AFR CNC Street Ported Heads 210cc 76cc  AFR-1050

$120   Drill Steam Holes

$300   Steel Solid Roller Comp Cams Camshaft 12-000-9 X4875/4876-108

           ADV- 286/292 @.050 248/254 .614/.621 LS-108

$100   Poly Distributor Drive Gear for Steel Core Cam

$320   Roller Lifters Comp Cams

$5      Cam Thrust Button CompCams COM-202

$105   True Roller Billet Steel CP1001

$130   Chrome-Moly Push Rods 21407300 7.30”

$290   Chrome-Moly Roller Tip Rockers 1.6:1 COM-1305-16

$75     Heads Gaskets FEL-1014

$20     Intake Gasket FEL-1206

$65     ARP Head Bolts ARP-134-3601

$205   Edelbrock Super Victor Manifold EDL-2925

$100   Rocker Stud Girdle Howard 43101K

$3335



COMPLETED LONG BLOCK

$50     Oil Pump MOR-22135

$10     Pump Stud ARP-230-7003

$10     Pump Driveshaft MEL-IS-55E

$210   Deep Sump Oil Pan MIL-31167

$20     Oil Pan Gasket MIL-40100

$35     Aluminum Timing Cover SS-1310

$90     Chrome Valve Covers mor-68335

$10     Timing Tab

$45     Engine Bolts

$10     Pump Block-off Plate

$500





TURNKEY COMPLETION

$610   Custom Built Carburetor

$50     Fuel Line BG-140020

$10     Carburetor Gasket & Studs

$210   Ignition Controller msd-6AL

$15     Oil Filter KN

$15     Oil filter Adapter

$15     8 Quarts Oil

$35     Spark Plugs Autolite AR-3933 0.035" gap

$15     Thermostat 180

$875



Parts: Total $7555



LABOR:

$800  CNC Machine Block

         (Align Bore Torqueplate Hone 4.155”  Zero Deck 9.000”  3.875” Clearanced)

$50     Deburr and Paint inside block

$170   Balancing

$100   Port Intake Mainifold

$700   Assemble Turnkey Engine with Camshaft Degreed

$750    Dyno Test Engine

Total $2570



TOTALS: $10,325     Freight $500  COMBINED TOTAL $10,825



march_kit.jpg Serpentine drive - Headers -
    Transmission - etc












Concept_Camaro_strokerengine.jpgGoTO Chevy ENGINES CLICK HERE











afr_logo.gifNew Eliminator SBC Head

Raising the Bar in Performance Yet Again

Whopping 10% increase in flow at all valve lifts.




3HP STARTER  $250


       Hitachi Starter 1.9 HP
2.68HP STARTER  $200



GM STARTER  $260





LS7_Lifter.jpg  LS7 RACING LIFTERS $280 (7000rpm) * 88958689
GM Performance hydraulic roller lifter set for high performance applications. This new hydraulic roller lifter was developed by GM Racing and contains lightweight internal components and precision oil metering for increased valvetrain stability at high RPM’s. This part number is a set of 16-lifters.
This new lifter will work in all LS- engine applications and is specifically suited for race cams and high RPM applications. They can also be used as an upgrade for stock lifters and are suitable for street applications. These lifters were developed for the CTSV Cadillac Race Team that used the “short stroke” LS7 style engines that raced in the Grand Am Cup Series during 2005. If you recall these engines were built using the LS7 block, LS7heads, and LS7 intake but the sanctioning body required the teams to meet the 5.7-liter engine size of 346ci. There were several different combinations tried but most of these engines used a stroke of approximately 3.200”. The demand to make race winning horsepower with a short stroke guarantees the unavoidable element of high RPM’s.
Initial testing, before these new lifters were developed, showed a definite valvetrain stability problem above 7000-rpm’s. Several remedies were tried, but in the end it was determined that the lifter had the biggest contribution to the RPM limit. This new lifter has internal changes made to the hydraulic components which resulted in a significant RPM increase. After installing the new lifters, these engines were now making power at 8000-rpm and they regularly saw 8500-rpm’s without any problems! WOW! The CTSV dominated the first races, not only did the sanctioning body enforce an RPM limit on the short stoke Caddies but they eventually implemented more restrictions to limit the horsepower on these LS7 equipped 346ci engines.
As a reminder, hydraulic roller cam valvetrain stability is a function of many different variables; camshaft design (ramp acceleration), pushrods, valve springs, rocker ratios, spring pressures, valve weight, the weight of all valvetrain components, oil pressure, RPM, etc. It is imperative that you have sufficient spring pressures, quality push rods and lifters, proper lash adjustment, and the lightest valvetrain components you can afford to maintain accurate stability at high RPM’s. Match your components to meet your RPM range! We recommend a preload setting of 0.060” (cold) with these lifters, in most cases with adjustable rockers this is usually somewhere between 1-full turn and 1-1/2 from the “Zero-Lash” point. This is the same preload as a stock lifter









SBC BOOKS















pc_blowthrough_strokerengine.jpg How Much Power Will I Make? Crosswinds_Chevy.jpg
TPISLT1_strokerengine.jpgChanging Parts & Dyno Testing crane_cam_1.jpg the SBC Crane_Roller_Rockers_460.jpg CLICK HERE Thorley Tri-Y Headers - DTE-304-Y




Here is a 355cid verse a 427cid as tested by Popular Hot Rodding Magazine using the same heads and camshaft.

                355                    427
RPM         TQ - BHP            TQ - BHP
2600        346 - 171           507 - 251             increase 161TQ 80BHP
3600        422 - 290           549 - 376             increase 127TQ 87BHP
4600        456 - 399           556 - 487             increase 100TQ
88BHP
5600        444 - 474           475 - 507             increase   31TQ 34BHP
6000        425 - 486           418 - 478                 loss      7TQ  8BHP



Power output depends on cam duration.
Long duration cams make more bhp, but have a rougher idle and less vacuum.
Anything above In. 236 @ .050" is short on vacuum for power brakes.
Shorter duration cam increase torque in the 2000rpm range.                    See Examples

eg. 383
In Dur   tq @ 2500    tq @ 3500   tq @ 4500     peek bhp @ rpm
218           494                502               477                     425   5000
224           489                507               494                     447   5200
230           479                507               509                     474   5500
236           465                500               441                     495   5700
242           449                490               514                     516   6000


eg. 395
In Dur   tq @ 2500    tq @ 3500   tq @ 4500     peek bhp @ rpm
218           510                514               480                     422   5000
224           506                520               498                     446   5200
230           496                520               515                     468   5500
236           482                514               522                     495   5700
242           466                505               524                     510   6000


DESKTOP DYNO COMPARISIONS



Wondering what horsepower numbers mean for drag racing?

Dyno Ratings See Here

CLICK FOR CALCULATORS






 Make Huge Power Click Here



HRM Cylinder Head Test 383 236/242 Comp Cam.

Advertised Intake Port 165cc Measured Port (178) @.400" Lift / .500" lift

Dart Iron Eagle S/S 165cc (178) 475lb-ft @ 3900 rpm  430hp @ 5700 rpm. 219cfm @ .4  / 222 @ .5

Dart Iron Eagle Platinum 215cc (215) 478lb-ft  @ 4100 rpm  450hp @ 5600 rpm  220cfm @ .4 / 251@ .5

World Motown 220cc (220) 478lb-ft @ 3800 rpm 439 horses @ 5400 rpm. 222cfm @ .4  / 243 @ .5

RHS 200cc (200)  468lb-ft  @ 3900 rpm  422hp @ 5500 rpm. 210cfm @ .4 / 233 @ .5

 Vortec 170cc (185) 489 lb-ft of torque @ 3900 rpm  430hp @ 5300 rpm. 212cfm @ .4 / 210 @ .5



Edelbrock Performer RPM Aluminum 170cc (175) 49 lb-ft  @ 3900rpm 452hp @ 5500 rpm 233cfm @ .4 244 @ .5

ProComp180cc (195) Aluminum  470lb-ft @ 4100 rpm 409hp @ 5600 rpm. 194cfm @ .4 / 231 @ .5

Trick Flow 195cc (195) Aluminum  496lb-ft @ 4000 rpm 455hp @ 5300 rpm. 215cfm @ .4  / 239 @ .5
