SMALL BLOCK
CHEVROLET

 ENGINE PACKAGES FOR 2010

These Engines Are Minumal Cost Combinations

All Engines Are Built Once An Order Is Placed

I do not keep any engine in inventory.

I've never built 2 engines exactly the same, everyone wants something special for their application.

Build Time Is Approximately 6-8 Weeks

California  strokerengine@hotmailcom

760-508-4562

SHIPPING  To Most Destinations Is $500


Warranty





Payment Options & Shipping





All Engines Run Before Shipping Limited Warranty is for 1 Year



Lowest 350 Engine  $3000 GM Built Motor
Regular Gasoline
350cid 8.5:1 Compression  260HP
This is a GM built long block that is finished as a turnkey engine

PAC-10067353-1 - PACE 350 Engine Package (Base Package Without Serpentine Drive System)



  • 350 Cubic inches 4.00" Bore, 3.48" stroke
  • 8.3:1 compression ratio.
  • 260 HP @ 4400 rpm
  • 350 ft. lbs of torque @ 3600 rpm
  • Universal block cast iron, 2 piece rear main seal 4 bolt main
  • Crankshaft- Nodular Iron 1985 and older flywheel bolt pattern.
  • Powdered Metal Connecting rods
  • Cast Aluminum Pistons
  • G.M. High Volume Pump Oil Pump
  • Hydraulic Flat tappet Camshaft (Stock grind)  Change Camshaft add $200
  • Cylinder Heads- casting #33417369, 1.94" /1.50"  76cc
  • 7 Bolt style Exhaust Flange.
  • Perimeter bolt style Valve Covers.

This is what I add...

  •  Flow Kooler Iron Water Pump
  • Edelbrock Performer EPS Intake Manifold
  • Edelbrock Performer Carburetors - EDL-1406
    Edelbrock 4 Barrel 600 cfm square bore carb, electric choke, vacuum secondary

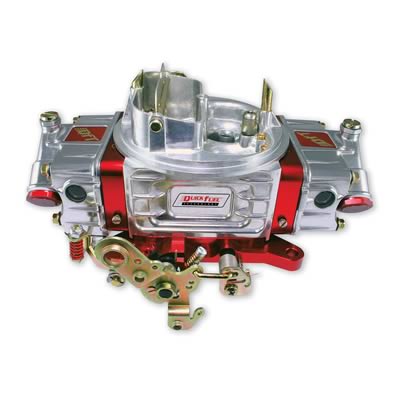

  • Or Rebuilt QuickFuel Holley 650cfm Vacuum Secondary Electric Choke Carburetor
  • GM Mechanical fuel pump
  • 14" Chrome Air Cleaner
  • 8" Harmonic balancer
  • Flex-plate
  • Pertronix_HEI_(x).jpgMSD HEI Distributor, Spark Plugs, Wires and Looms
  • Oil Filter
  • Oil Dipstick & Tube

Add $250 and I will break in the camshaft.

If you break in the motor and loose a lobe you will need to appeal to GMs warranty - Void outside the USA

LONG BLOCK ONLY. $1875


jos1motorse.jpg picture by johnnijssen
UPGRADE TO POLISHED MOTOR COMPLETE $680
Aluminum Valve Covers


 Polished Aluminum Water Pump


Summit Chrome Alternators - SUM-G1667ASpectre Performance Chrome Alternator Brackets - SPE-47183
Polished Alternator 100 AMP & Chrome Bracket


  Pulleys and Belt
Hitachi, 1.9 HP Mini Starter, Chev SB/BB, 153T/168TStarter Motor


Simple 750CFM EFI System $1625 less Carb package

  pfs-70027_w.jpg picture by johnnijssen




FAST EFI OPTION $1750 or $2100

See Front Page



platinum.jpg picture by strokerengine

Fuel Additive System Realy Works. Legal Claim is 22% Increase in Fuel Mileage

Baseline Fuel consumption without Gasaver .......................................................13.18 mpg

Test No. MPG Test No. MPG Test No. MPG
1 15.72 7 15.71 13 15.60
2 15.71 8 15.67 14 15.62
3 15.65 9 15.70 15 15.57
4 15.68 10 15.66 16 15.60
5 15.70 11 15.63 17 15.63
6 15.69 12 15.58 18 15.69
        19 15.69

Average Fuel Consumption with Gasaver..........................................................15.66 mpg

Percentage Improvement...................................................................................... 18%

The Following is excerpted from the sworn testimony of Harry Hyde before an Administrator Procedure of the Federal Consumer Protection Office on 22 July 1982 At Boston , MA

" I was always a bug for buying something something and testing it myself . This is the only fuel saving device that I found that actually contributed - the first thing that I had seen that did work. I was digging and probing and trying to fail this thing . I didn't want to lay my reputation on the line for selling a product that was no good - that I was still skeptical about . But I have never found less than 10% improvement with the Gasaver in the cars that I tested . Including six - and eight cylinder Chrysler, Ford, And Gm Cars and the VW."

" What's more , After Running that old Chevy engine on my engine dynamometer for six or seven days , the Gasaver had done a masterful job of cleaning up the inside of the combustion chamber . An engine that's sloppy, dirty, greasy mess inside would cost a lot of fuel miles just by being dirty. The clean-up that I saw in the engine was worth more than the fuel I was saving. "

Harry Hyde has built race cars and race engines, and raced in stock car races since 1946. He has over 300 wins, numerous track records, and ten Midwest Championships. He has also set 30 world at Tallageda, Alabama Pike Peak, Colorado, and Bonneville Flats, Utah. He ha raced with a number of drivers including Bobby Allison, Buddy Baker, Bobby Unser and Gordon Johncock. He has also done extensive engine and vehicle testing for Chrysler Corporation and the Goodyear Tire and Rubber Company. he was elected to the Mechanics Hall of Fame 1971.

enginehhotek-1.gif picture by johnnijssen

Upgraded Performance Engine  $3900
Regular Gasoline
350cid 9.0:1 Compression  300HP

350 ENGINE  Painted Orange or Black   pc353
New Block & GM Heads As Above
Performance Camshaft
Hypereutectic Lightweight Pistons Painted oil pan & Valve Covers
Harmonic Balancer
Performance Flexplate with bolts
Iron Water Pump
Aluminum Intake Manifold

  Holley Avenger Carburetor
Fuel Pump with Plate & Pushrod
Chrome Air Cleaner
Pertronix_HEI_(x).jpgHEI Distributor
Spark Plugs
Plug Wires
Fuel Pump with Plate & Pushrod
Oil Filter & Adaptor
Thermostat & Cover



Horsepower On Custom Built Engines Output Depends onSummit Camshafts - SUM-1102Camshaft Selection





I have found the Professional Products Vortec Manifold flows best with the RHS heads

The following builds are examples. Seems I never build 2 motors exactly the same.

Write or call to discuss your application

 Gen 1 Style 350 Engine 9.0:1

Premium Gasoline
LOWEST COST COMBINATION
Approx 350Hp to 450Hp   $4500

PaceSB12561723_b-1.jpg picture by johnnijssenpc117
GM 4 Bolt Non Roller Cam 2 Piece Rear Seal Fuel Pump Block.
 New Balanced GM Cast Iron Crank & Rods with  Dish Pistons
Harmonic Balancer and Flexplate

Flat Tappet Hydraulic Camshaft & Lifters




 PUSHRODS  ROLLER TIP ROCKER ARMS   TIMING SET


rhs180cc.jpg picture by johnnijssen

 Dart Iron 165cc Heads

Proform Chrome Street Oil Pans - PRO-66162
Harmonic Balancer & Flexplate with bolts
 5-quart Oil Pan, Front Cover Oil Pump

pfs-52026_w.jpg picture by johnnijssen
Airgap Intake Manifold





 Pertronix_HEI_(x).jpg MSD HEI Distributor
ngk-1034_w_m.jpg picture by johnnijssen NGK Spark Plugs
Mallory Pro Sidewinder Spark Plug Wire Sets - MAA-937
Plug Wires & Separators

Oil Filter & Adaptor
Thermostat & Adjustable Cover


sum-g3000_cp.jpg picture by johnnijssenAir Cleaner
sbc_iron_waterpump.jpg picture by johnnijssen Iron Water Pump Request Rotation Direction



Holley Avenger Carb Fuel Pump with Plate & Pushrod Vaule $480 Exchanged for EFI or Remove



Vortec Style 350 Engine 9.0:1

Premium Gasoline
LOWEST COST COMBINATION
Approx 350Hp to 450Hp   $5000

12556121.gif picture by johnnijssenpc121

GM 4 Bolt Roller Cam 1 Piece Real Seal No Fuel Pump  Block.
New Balanced GM Cast Iron Crank & Rods with Dish Pistons
Harmonic Balancer and Flexplatewith


Roller Hydraulic Camshaft & Lifters



 PUSHRODS  ROLLER TIP ROCKER ARMS   TIMING SET





Vortec Heads 170cc approx 260cfm @ .5

Proform Chrome Street Oil Pans - PRO-66162
Harmonic Balancer & Flexplate with bolts
 5-quart Oil Pan, Front Cover Oil Pump


PPvortecmanifold.jpg picture by johnnijssen
Vortec Airgap Intake Manifold


 Pertronix_HEI_(x).jpgMSD HEI Distributor
ngk-1034_w_m.jpg picture by johnnijssen NGK Spark Plugs
Mallory Pro Sidewinder Spark Plug Wire Sets - MAA-937
Plug Wires & Separators

Oil Filter & Adaptor
Thermostat & Adjustable Cover

sum-g3000_cp.jpg picture by johnnijssenAir Cleaner
sbc_iron_waterpump.jpg picture by johnnijssen
Iron Water Pump Request Rotation Direction




Holley Avenger Carb Value $400 Exchanged for EFI or Remove




 Gen 1 Style 383 Engine 9.0:1

Premium Gasoline
LOWEST COST COMBINATION
Approx 350Hp to 450Hp   $6000


GM 4 Bolt Non Roller Cam 2 Piece Rear Seal Fuel Pump Block.
 New Balanced Cast Steel Crank & Rods with  Dish Pistons
Harmonic Balancer and Flexplate

Flat Tappet Hydraulic Camshaft & Lifters




 PUSHRODS  ROLLER TIP ROCKER ARMS   TIMING SET


Vortec Heads 170cc approx 260cfm @ .5

Proform Chrome Street Oil Pans - PRO-66162
Harmonic Balancer & Flexplate with bolts
 5-quart Oil Pan, Front Cover Oil Pump

PPvortecmanifold.jpg picture by johnnijssen
Vortec Airgap Intake Manifold






 Pertronix_HEI_(x).jpg MSD HEI Distributor
ngk-1034_w_m.jpg picture by johnnijssen NGK Spark Plugs
Mallory Pro Sidewinder Spark Plug Wire Sets - MAA-937
Plug Wires & Separators

Oil Filter & Adaptor
Thermostat & Adjustable Cover




sum-g3000_cp.jpg picture by johnnijssenAir Cleaner
sbc_iron_waterpump.jpg picture by johnnijssen Iron Water Pump Request Rotation Direction



Holley Avenger Carb Fuel Pump with Plate & Pushrod Vaule $480 Exchanged for EFI or Remove







Roller Cam 383 Engine 9.0:1

Premium Gasoline
LOWEST COST COMBINATION
Approx 350Hp to 450Hp   $6500


 GM 4 Bolt Roller Cam 1 Piece Real Seal No Fuel Pump  Block.
New Balanced Cast Steel Crank & Rods with Dish Pistons
Harmonic Balancer and Flexplatewith


Roller Hydraulic Camshaft & Lifters



 PUSHRODS  ROLLER TIP ROCKER ARMS   TIMING SET





rhs180cc.jpg picture by johnnijssen

 RHS Iron 180cc Heads approx 260cfm @ .5

Dart brand heads are $45 more.

200cc heads will make more Hp at 6000rpm, same price



Proform Chrome Street Oil Pans - PRO-66162
Harmonic Balancer & Flexplate with bolts
 5-quart Oil Pan, Front Cover Oil Pump


pfs-52026_w.jpg picture by johnnijssen
Airgap Intake Manifold

Open plenum manifold will make more Hp at 6000rpm same price.



 Pertronix_HEI_(x).jpgMSD HEI Distributor
ngk-1034_w_m.jpg picture by johnnijssen NGK Spark Plugs
Mallory Pro Sidewinder Spark Plug Wire Sets - MAA-937
Plug Wires & Separators

Oil Filter & Adaptor
Thermostat & Adjustable Cover

sum-g3000_cp.jpg picture by johnnijssenAir Cleaner
sbc_iron_waterpump.jpg picture by johnnijssen
Iron Water Pump Request Rotation Direction




Holley Avenger Carb Value $400 Exchanged for EFI or Remove




Premium Only Gasoline
470HP 383 10.0:1 Compression
 $6500
Seasoned 4 bolt 350 Block

 Cast Steel Steel Crankshaft
Scat_I_beam_sm.jpg Scat 4340 6.00" Connencting Rods
probe_383_fps.jpgHypereutectic Pistons
Harmonic Balancer
Flexplate with bolts
Chrome Oil Pan, Front Cover
















Premium Only Gasoline
450 to 520HP 10.3:1 Compression
 $7500
 New 4 bolt Main Roller Cam Block
 4340 Forged Steel Crankshaft
Scat_I_beam_sm.jpg Scat 4340 6.00" Connencting Rods
mahlepistonpic.gifMahle Forged Coated Pistons
Harmonic Balancer
Flexplate with bolts
  7 quart Oil Pan, Front Cover

afr_eliminator_new.jpgafr_logo.gif195cc Cylinder Heads

Hydraulic Roller Camshaft
OEMSBCHydRolLift.jpg picture by johnnijssen

Scorpion Race Series Rocker Arms - SCC-SCP1021  Roller Rockers






Performance Carb & fuel log
Pump with Plate & Pushrod
Air Cleaner
MSD HEI Distributor
Spark Plugs
Premium Plug Wires & Separators
Oil Filter & Adaptor
Thermostat & Chrome Adjustable Cover
Aluminum Water Pump



 Premium Only Gasoline
500 to 600HP 10.0 to 11.0:1 Compression
Very Strong 383 Performance  $8500 to $9200


 4340 Forged Steel Crankshaft
ultra_lite_rod_lrg_1.gif   Pro I-Beam orH-Beam_Rods.jpg H-Beam 4340 Coneecting Rods
Custom Made Forged Pistons
Chrome Harmonic Balancer
Aluminum Cylinder Heads 195cc or 210cc + $100

 Bullet Hydraulic Roller Camshaft
 Higher RPM Hydraulic Roller Lifters
cclwrockers.jpg picture by johnnijssenLightweight Steel Rockers

Flexplate with bolts
7quart Oil Pan, Front Cover & Dipstick

 EDELBROCK RPM AIRGAP to 520Hp

 VICTOR JR need to 560Hp





 Bigger manifolds to go to 600Hp
silverproseries.jpg picture by johnnijssen







Fuel Pump with Plate & Pushrod
Air Cleaner
MSD Ignition

Spark Plugs
Premium Plug Wires & Separators
Oil Filter & Adaptor
Thermostat & Chrome Adjustable Cover
Water Pump






Premium Only Gasoline

HIGH  TORQUE Engines

 Or 420 to 440 Dart SHP Block
$9000 to $10,500

DART SHP BLOCK
Bored 4.000 - 4.185 Clearance up to 4.00 Stroke


Chrome Moly Forged Steel Crankshaft 3.875 or 4.00" Stroke
 91015221_R.jpg picture by johnnijssenScat Lightweight Stroker Rods

Custom Made Forged Pistons

Uses many of the same parts above

PREMIUM PARTS
Dart Little M Block
CompStar Crankshaft
CompStar Rods

Howard Track Smart Crank
Howard Billet Rods

 Contact me from pricing on these motors


DYNO TEST ADD $750







 Blower Motors are built with can be built with cheaper brands, but for real power Procharger and 871_2.jpg picture by johnnijssenSupercharger USA rule!

Starting at $11,500 but go closer to $15,000 if you want to make serious power and keep it together











asp hit counterUnique
 myspace web counterEvery



Octane Rating Calculation Methods

There are various calculation methods, RON, MON, and PON or AKI.



RON: (Research Octane Number). Most common fuel used in Europe, Australia and some other Countries. It is determined with measurements of fuel behavior in a variable compression engine. Results are compared with other iso-octane fuels, wish means, compared with other fuel types with equal number of similar octane molecules present, but not the of the same organic compound.

MON: (Motor Octane Number). Determined also with a variable compression engine, but with the fuel already preheated, variable ignition timing and higher RPMs than the RON method. This method is more precise on determining fuel behavior on an loaded engine.

PON or AKI: (Pump Octane Rating or Anti-Knock Index): This is the method used in USA and Canada, expressed as [R+M]/2, wish means RON number plus MON number, divided by 2. In other words, it is the average between both methods above.

So, due to the fact that RON is always from 4 to 5 points higher of its equivalent to PON or AKI, the number conversion between USA and Europe octane ratings will approximately be as follows:



USA (PON) -> Europe (RON)

87 -> 91
89 -> 93
91 -> 95
93 -> 98
